Description

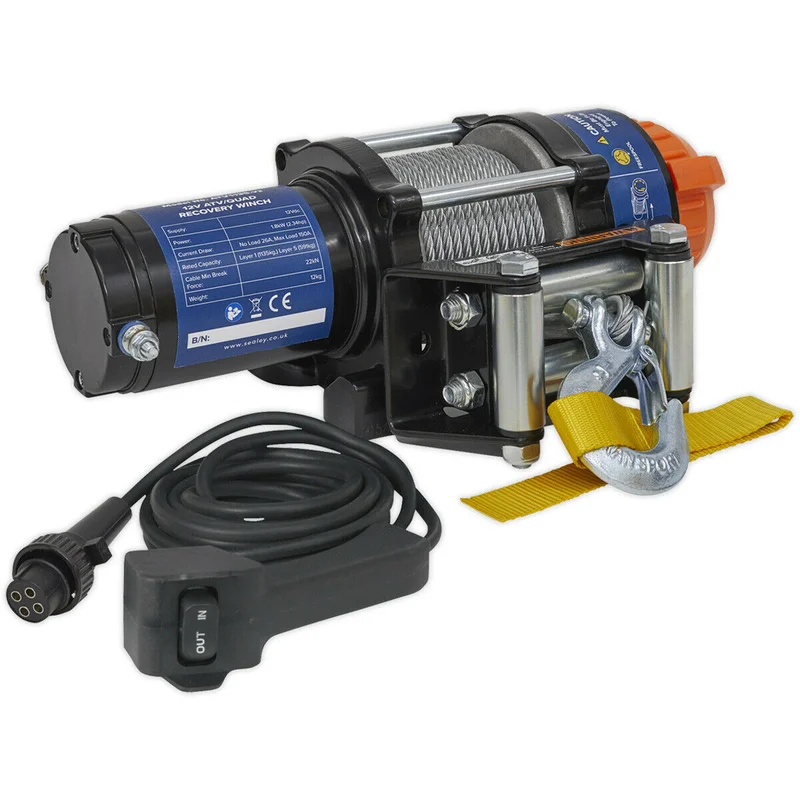

12V ATV Quadbike Recovery Winch – 1135kg Line Pull – Heavy Duty Housing
Overview:
Suitable for ATV & quadbike mounting, these high-speed winches offer a combination of performance with durability. Designed and built with the toughest jobs in mind. High power 1.8kW (2.34hp) 12V DC permanent magnet type motor gives first class pulling power. Heavy-duty all-weather housing. 3-Stage planetary gears. Patented unique automatic spring brake, reliable in full load operation. Sliding ring gear clutch. High quality wire rope feeds through 4-way roller fairlead. IP67 rated motor and gearbox.
Features:
- Suitable for ATV & quadbike mounting, these high-speed winches offer a combination of performance with durability.
- High power 1.8kW(2.34hp) 12V DC permanent magnet type motor gives first class pulling power.
- Heavy-duty all-weather housing.
- 3-Stage planetary gears.
- Patented unique automatic spring brake, reliable in full load operation.
- Sliding ring gear clutch.
- High quality wire rope feeds through 4-way roller fairlead.
- IP67 rated motor and gearbox.
- Gear Ratio: 180:1.
Specification:
- Cable Minimum Brake Force – 22kN
- Consumable Parts – ATV1135.WR – Wire Rope (Ø4.8mm x 15.2m) for ATV1135, ATV1135.DR – Dyneema Rope (Ø4.9mm x 15.2m) for ATV1135
- Current Draw – No-Load – 26A, Maximum Load – 150A
- Gear Ratio – 180 -1
- Line Pull* – 1135kg(2500lb)
- Line Speed* – No-Load – 4.8m/min, Maximum Load – 1.6m/min
- Motor Power – 1.8kW(2.34hp)
- Net Weight – 11.8kg
- Note – *Performance quoted at first layer of cable on drum
- Rated Capacity – Layer 1 – 1135kg, Layer 5 – 591kg
- Supply – 12V
- Wire Rope Diameter – 4.8mm
- Wire Rope Length – 14m
Further Information:
We sell a wide variety of tools & workshop equipment for both the DIY and Professional markets. With well over 10,000 lines of equipment suiting all jobs big or small, our online store has it all. If you can’t quite find what you are looking for, please feel free to contact us and we’ll be more than happy to help.
Alias: ys02806
