Description

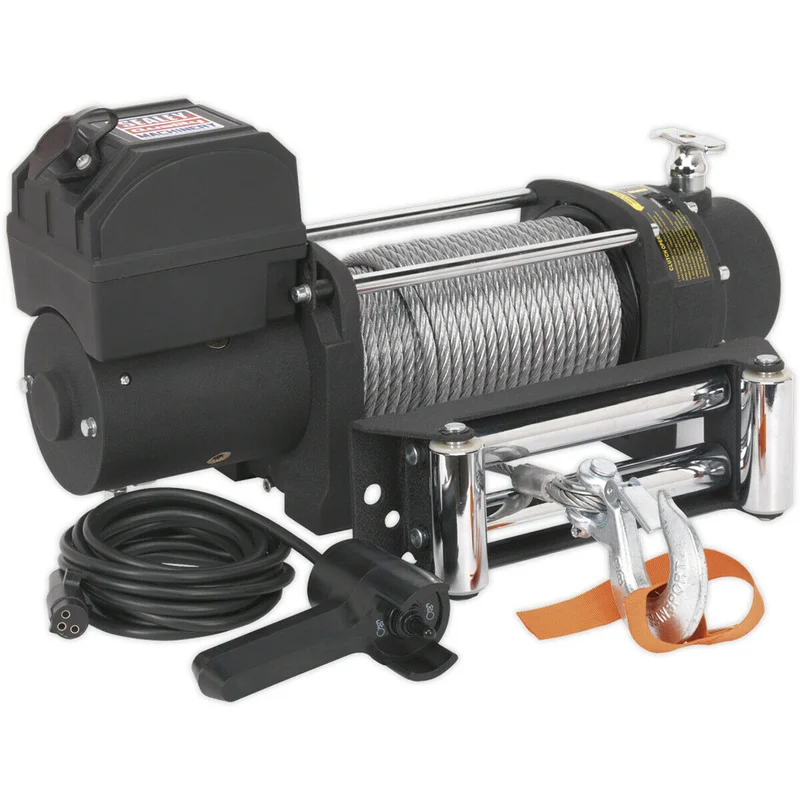

12V Self-Recovery Winch – 5450kg Line Pull – 2kW DC Wound Motor – IP67 Rated
Overview:
Suitable for self recovery and off-road use. Heavy-duty all-weather housing and solenoids. 3-Stage planetary gears using oversized components for greater torque, plus mechanical braking. Remote control allows power in and power out of cable from a safe distance. Ergonomic ‘lift & turn’ free spool clutches. High quality wire rope with a 4-way roller fairlead for smooth and even distribution of cable onto drum. IP67 rated.
Features:
- Suitable for self recovery and off-road use.
- Designed and built with the toughest jobs in mind.
- Heavy-duty all-weather housing and solenoids.
- High power 2kW 12V DC series wound motor gives first class pulling power.
- 3-Stage planetary gears using oversized components for greater torque plus ‘in drum’ brake.
- Remote control allows power in and power out of cable from a safe distance.
- Ergonomic ‘lift & turn’ free spool clutches.
- High quality wire rope with a 4-way roller fairlead for smooth and even distribution of cable onto drum.
- Cable Length: 26m.
- Line Pull*: 5450kg(12000lb).
- Gear Ratio: 196.6:1.
- IP67 Ingress rated.
Specification:
- Consumable Parts – SRW5450.WR, SRW5450.DR
- Current Draw – No-Load – 90A, Maximum Load – 460A
- Gear Ratio – 196.6 -1
- Line Pull* – 5450kg(12000lb)
- Line Speed* – No Load – 4.3m/min, Maximum Load – 0.6m/min
- Motor Power – 2kW
- Net Weight – 40.5kg
- Note – *Performance quoted at first layer of cable on drum
- Supply – 12V
- Wire Rope Diameter – 9.2mm
- Wire Rope Length – 26m
Further Information:
We sell a wide variety of tools & workshop equipment for both the DIY and Professional markets. With well over 10,000 lines of equipment suiting all jobs big or small, our online store has it all. If you can’t quite find what you are looking for, please feel free to contact us and we’ll be more than happy to help.
Alias: ys09218
Reviews
There are no reviews yet.
