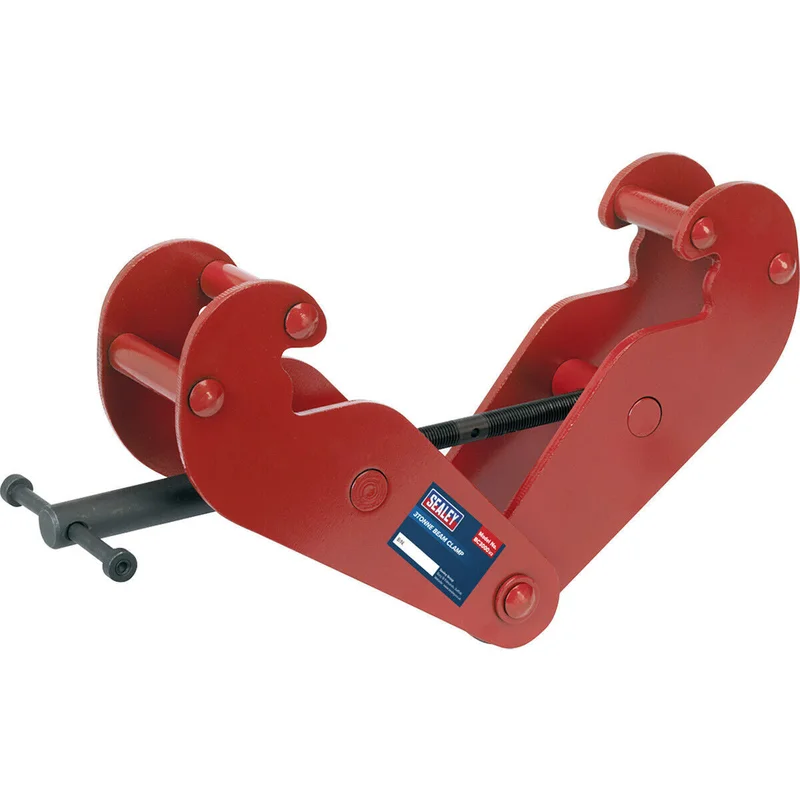

3 Tonne Beam Clamp – Semi-Permanent Steel Beam Attachment – Lifting Point

Description

3 Tonne Beam Clamp – Semi-Permanent Steel Beam Attachment – Lifting Point

Overview:

Suitable for semi-permanent attachment to steel beams and acts as a lifting point for chain blocks, hoists and lifting tackle. The clamp may also be used for lifting and transfer of steel beams and as a pulling clamp. Low profile afforded by integral pivot/lifting point.

Features:

• Suitable for semi-permanent attachment to steel beams and acts as a lifting point for chain blocks, hoists and lifting tackle.
• The clamp may also be used for lifting and transfer of steel beams and as a pulling clamp.
• Low profile afforded by integral pivot/lifting point.

Specification:

• Adjustable Beam Width – 80-320mm
• Capacity – 3000kg
• Dimensions – (A) – 354mm, (B) – 235-490mm, (C) – 103mm, (D) – 8mm, (E) – 260mm, (F) – 140mm, (G) – 45mm, (H) – Ø24mm
• Net Weight – 9.1kg
• Note – Refer to catalogue for diagram.
