Description

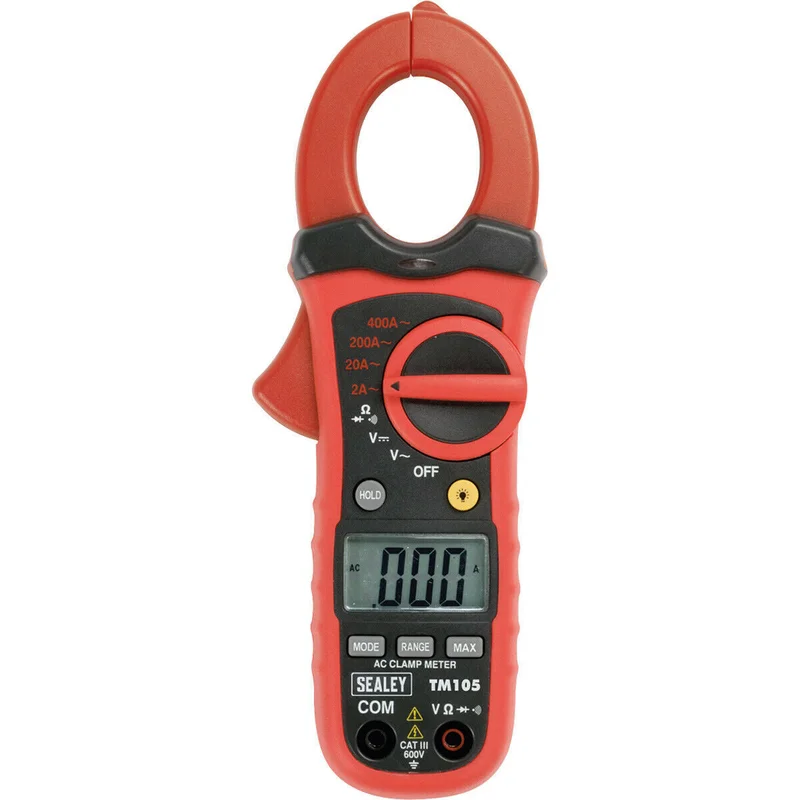

32mm 6 Function Auto-Ranging Digital Clamp Meter – Non-Contact Voltage Detection
Overview:
High precision clamp meter. Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use. Features non-contact AC voltage detection function while controls are laid out to enable use with one-hand. Includes data and max. hold functions. Double moulded housing with soft grip case, large display for ease of use and 30mm clamp. Supplied in zipped pouch with carry strap.Measures:• AC and DC Voltage• AC Current• Resistance• Diode Test• Continuity Buzzer• Non-Contact Voltage Detection (NCVD)
Features:
- High precision clamp meter.
- Conforms to EN 61010-1 CATIII 600V safety requirements for electrical equipment for measurement, control and laboratory use.
- Features non-contact AC voltage detection function while controls are laid out to enable use with one-hand.
- Includes data and max. hold functions.
- Double moulded housing with soft grip case and large display for ease of use.
- Supplied in zipped pouch with carry strap.
Specification:
- Net Weight – 345g
- AC Voltage (Accuracy) – 200mV (±1.5%), 2V, 20V, 200V (±1.8%), 600V (±2.5%)
- DC Voltage (Accuracy) – 0-200mV (±0.8%), 2V, 20V, 200V (±1.5%), 600V (±2%)
- AC Current (Accuracy) – 2A, 20A, 200A (±2.5%), 400A (±3%)
- DC Current (Accuracy) – No
- Resistance (Accuracy) – 0-200Ω (±1%), 2kΩ, 20kΩ, 200kΩ (±1.5%), 2MΩ (±2.5%), 20MΩ (±3.5%)
- Capacitance (Accuracy) – No
- Temperature (Accuracy) – No
- Frequency (Accuracy) – No
- Duty Cycle – No
- Continuity Audible – Yes
- Diode Test – Yes
- Transistor Test – No
- Hi-Impact Rubber Case – No
- Digits x Height – 3.5 x 14mm
- Low Battery Indicator – Yes
- Battery (Supplied) – 1 x 9V
- Jaw Opening – 32mm
- Information – Data-Hold, Auto-Power-Off, Non-Contact Voltage Detection
- Size (L x W x D) – 197 x 70 x 40mm
- Weight – 345g
- Conformity – EN 61010-1
