Description
Quality Bluetooth Amplifier (110W), 10x WhiteSpeakers & Brackets Kit
Perfect for bars, restaurants, clubs, cafés, pubs, hotels & home.
**Call us after ordering if you would prefer Black speakers. They can beswapped around at no extra stock providing we have stock.

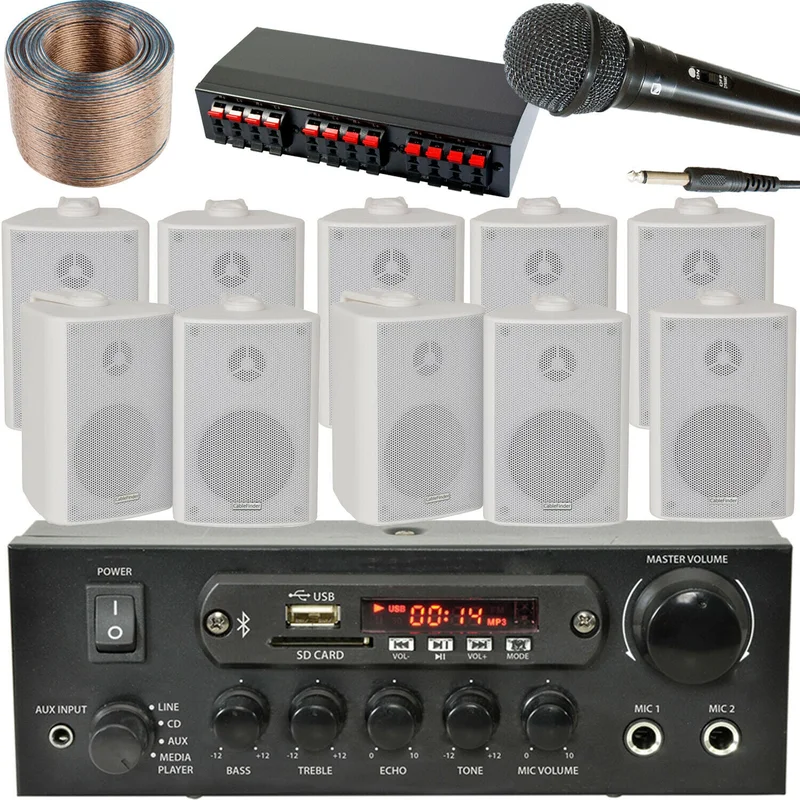

What’sIncluded?
1x 110W Bluetooth HiFi Amplifier
10x (5 Pairs) 60W White Satellite Speakers – Wall brackets included
1x 5 Port Speaker Splitter (this provides 5 zones and maintains a true stereosignal)
100m reel of 1.5mm² quality speaker cable (CCA)
1x Dynamic Handheld Microphone & Cable For The Amplifier
1x UK mains power cable
1x Instruction manual
What does it do?
This kit allows youto play music through all 10 speakers whilst maintaining a true stereo signal.The supplied speaker switch/splitter lets you split your installation intoZones. Allowing you to turn off certain rooms at the push of a button from theamplifier. Please see below for more information on each product in this kit.Please feel free to contact us if you have any questions.
Overview Amplifier:
Ideal when installedin a bar, restaurant or pub environment, this kit allows you to play musicthrough the 10x 60W wall speakers. Perfect for background music during serviceor for transforming a dining area into a dance floor when the tables have beencleared away (providing the space isn’t too large).
This amplifier has a built-in Bluetooth receiver allowing you to connect anydevices you have with Bluetooth (a smart phone with Spotify or a CD Player forexample) wired/wirelessly. This is brilliant for keeping the amplifier hiddenaway in a cupboard. Your device would not need line of sight to play musicthrough the connected speakers. Perfect for at home, in the office or shop andeven for use in professional installs.
The Amplifier has several 2 RCA/PHONO inputs allowing you to connectdevices that are not compatible via Bluetooth. It also has 2x Microphone inputson the front of the unit, perfect for a karaoke night.
Equipped with bass, treble, echo, tone, mic volume and master volume controls.This amplifier is very capable for its cost and be used easily bya professional or amateur alike.
Overview Speakers:
Ideal for home cinemasurround sound or Hi-Fi applications, these compact and discreet 2 way stereospeakers are supplied with adjustable wall mounting brackets and are availablein either black or white.
Construction – Housed in a rugged ABS plastic casing with a subtle, yetdurable mesh grille, these speakers will look stylish & discrete in mostenvironments. Each enclosure contains a high quality 1” balanced polymertweeter (double the size of most on the market) and a 3” surround woofer toproduce a great sound for such a compact speaker.
Fitting – There is an adjustable mounting bracket on the back of eachspeaker allowing you to securely position each speaker where it needs tobe.
1 Input to 5 OutputStereo Speaker Splitter Box
How it works – By connecting an amplifier to the splitter box youcan distribute the sound up to 5 sets of stereo speakers (10 speakers in total). You can switchindividual sets of stereo speakers on and off and you can use headphones viathe 6.35mm output on the front of the splitter box.
General – This box has a metal outer case, rubber feet on thebottom and because the build quality is excellent, it is robust anddurable. The dimensions are 260mm x 120mm x 54mm
Technical Specification:
Amp
6 selectable lineinputs
1x – Bluetooth receiver (wireless)
2x – 2 RCA/Phono (red & white) inputs
1x – 3.5mm AUX jack
1x – USB media input
1x – SD Card media input
2x 6.35mm Microphone inputs – Allows you to use as a loud hailer / publicspeaking / singing System
1x FM Antenna Connections
2x – spring terminal / speaker cable (red & black) outputs
Built-in FM receiver
Sleek and compact design
Durable metal body with breathable air vents built in.
UK mains power cable supplied
Power Supply – 230V AC, 50Hz
Power output max per channel at 4 Ohms – 55W (per side)
Power output per channel at 4 Ohms – 35W (per side)
Power output Max per channel at 8 Ohms – 40W (per side)
Power output RMS per channel at 8 Ohms – 25W (per side)
Dimensions – 200mm x 65mm x 200mm (WxHxD)
Weight – 1700g
Speakers
2-Way Speakers
Speaker Cable Connections
Max Power 8Ohm – 60w
Power RMS 8Ohm – 30w
Sensitivity (1m, 1W) – 88DB
Frequency Response – 120Hz-20kHz
Impedance – 8 ohms
Dimensions:
Height 150mm, Width105mm, Depth 105mm (Per Speaker)
5 Port Speaker Splitter
Resistors – Internal 100ohm resistors ensure the amplifier always seesa load, even with all switches turned off. However, it is good practice toensure that at least one pair of stereo speakers are switched on beforethe amplifier is turned on. A progressive switched resistor network ensuresthat the resistance generated is always equal to that of the speakers,providing that every speaker being used is of the same resistance. For example,speakers that are made by different manufactures may be different resistancesand they should not be used together with this device.
Speaker Cable
Blue line for polarity – easy connectivity (transparent outer insulation).
99 Strands with a 0.14mm diameter per core.
Area per core = 1.5mm² (AWG 16 Approx).
CCA (copper clad aluminium)
Outer diameter per core 3.1mm
Width of 2 cores combined 6.5mm (can be easily stripped apart).
Microphone
Dynamic, Unidirectional Handheld design
Detachable 3m XLR Female to ¼” Jack cable included
Steel Mesh Windshield
Freq response 80Hz-14kHz
Sensitivity -68dB (+-3dB)
Impedance – 600Ohms
170mm – Length
50mm – Diameter of head
33mm – Thickest part of the stem
Length of Cable Supplied – 3m
Peace of Mind – Tested toCE and RoHS standards
Further Information – If you require aslightly different system, don’t worry, we sell lots of other kits and productsand we can create a kit perfect for you – including outdoor kits for gardensand external events.Please feel free to get in touch and we will alwaysdo our best to help you.
